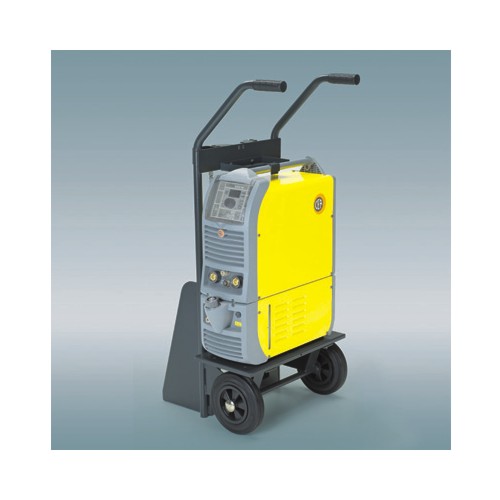

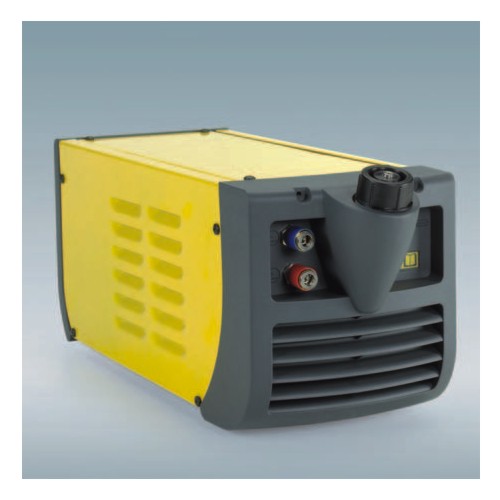

MATRIX 2200 AC/DC V220 MONOFASICO
Código: 004510 004511
DETALHESTECHNICAL DATA MATRIX 2200 AC/DC TIG DC MMA Single phase input 50/60 Hz V 20% -20% 230 Input power @ I2 Max kVA 6,5 7,0 Delayed Fuse (I2 @ 60%) A 16 Power Factor / cos ? 0,99 Efficiency Degree 0,80 Open circuit voltage V 100 Current range A 5-220 5-180 Duty cycle at (40°C) A 100% 140 120 A 60% 180 150 A 30% 220 180 Standards EN 60974-1 ? EN 60974-3 ? EN 60974-10 Protection Class IP 23 S Insulation Class F Dimensions mm 465 mm 185 mm 390 Weight kg 15.5
R$ 26.250,00
Quantidade:
